Small machine room passenger elevator

Vosam's small machine room passenger elevator, building on the foundation of modern mature technology, further enhances the reliability and flexibility of the elevator system, truly embodying the company's environmental protection and energy-saving philosophy.

Compared to traditional machine rooms, the small machine room passenger elevator adopts a reasonable civil engineering layout, making the machine room and shaft area comparable, saving more machine room space for you, and minimizing the impact of the machine room on the entire building. This machine room is not only distinctive, able to harmonize with the building's exterior, but also capable of meeting special architectural requirements. This can not only reduce construction costs but also inspire architects' creativity, creating unique works of art.

Descriptions

Appliance

Collection

Parametric

Precise control
Precise control technology is used to realize the intelligent operation of the elevator and ensure the safety, technology and comfort of the elevator.

lasting power
The soil material permanent magnet synchronous gearless traction machine system is used, which makes the operation more stable and faster, and the efficiency is increased by up to 40%.


Light curtain door protection
It has a waterproof IP65 light curtain protection system, and the light speed of the light curtain exceeds 154 beams to ensure the safety of passengers.


Comfortable ride

The elevator is protected by a frame-type car shell, making the ride more stable and safe. The elevator car is 2.4 meters high, equipped with LED natural light lighting, and also offers a variety of decoration options. Whether you are a VIP or an ordinary passenger, we will treat you well.

Machine roomless passenger elevator

The Vosam machine roomless passenger elevator aims to implement the concept of environmental protection, achieve energy conservation and consumption reduction, save building area, and provide more design freedom to fully demonstrate the characteristics of green humanity. Compared with the same type of organic machine room elevator, this product can save 40% of electric energy consumption and reduce the occupied building area by 10%. Vosam elevator breaks through the limitation that traditional elevators must have a machine room, providing unlimited creative possibilities for limited modern building space. This machine room-less passenger elevator is suitable for loads of 1000kg and below and running speeds of 1.75m/s and below.
Machine room-less passenger elevators only require shaft space and do not require additional machine rooms. Architects and developers are able to design more freely. In comparison, machine room-less passenger elevators take up less space, allowing you to use building space more efficiently, thereby saving construction time, materials and costs. The installation work is efficient and without impact, and the integrated design of the machine room and hoistway ensures that there will be no interference to the project.


Wide range of applications
Machine room-less passenger elevators are suitable for a variety of buildings, giving you a unique and comfortable experience.
Responsibility core, future heart

Machine room-less elevators are a variety of elevators specially developed to adapt to situations where the elevator machine room is not suitable for the top floor of the building. Machine room-less elevators are well versed in the concept of environmental protection, pursue energy conservation and consumption reduction, save building area, increase design freedom, and fully embody the characteristics of green humanities. It breaks through the traditional concept that elevators must be equipped with a machine room, and provides an innovative choice for the limited space of modern buildings.

Machine room-less elevator expands your building space
Machine room-less elevators adopt advanced design technology and require no additional machine room. They only need an independent shaft space to provide passengers with a comfortable and smooth experience. Because it takes up less space, architects and developers have more freedom with building designs. At the same time, the use of machine room-less elevators can also greatly shorten construction time and reduce the use of building materials. This kind of elevator is suitable for the installation of new elevators and the replacement of old elevators.

Seeing the big from the small adds to the excitement
In addition to adopting an efficient intelligent control system, the Vosam small machine room elevator also adopts a miniaturized traction machine and a thin design of the control cabinet, making the elevator's machine room smaller and more compact. The new generation of Vosam fast elevator is a small The computer room series products truly implement the company's energy-saving concept.
● Fully digital control
● Energy-saving permanent magnet synchronous gearless traction machine
● High-efficiency permanent magnet frequency conversion door machine
● Personalized decoration
Professional design art space
The application of Vosam's machine roomless elevator eliminates the need for a machine room at the top of the building, bringing greater flexibility to the exterior design of the building. We adopt advanced design concepts and mature control technology, especially combining the excellent performance of the permanent magnet synchronous toothless drive system and the advanced full computer data network system. Such a design not only embodies the forward-looking concept of humanized wisdom and low-carbon environmental protection, but also has good performance such as high efficiency, energy saving, space saving, safety and comfort.

●The optimized design of the shaft effectively saves 10% of the building area.
●Green drive and energy-saving devices achieve approximately 30% energy saving effect.
●Machine room-less design makes architectural design freer and easier.
VOS-CZ01
VOS-WH01
VOS- M01
VOS-DT01
Hairline stainless steel frame, LED lights, arched acrylic luminous panels
VOS-DT02

Hairline stainless steel frame, acrylic vault panel, LED light embellishment in the middle

VOS-DT03
Stainless steel frame, acrylic lamp
VOS-DT04
Short hairline stainless steel, curved acrylic, acrylic strips on both sides
VOS-DT05
Stainless steel frame, acrylic vault, acrylic lighting
VOS-DT06
Mirror stainless steel frame, acrylic lighting
VOS-DT07
Mirrored stainless steel frame, acrylic vault, acrylic lighting
VOS-DT08
Soft lighting design combining hanging square image main light panel and LED lights
VOS-DT09
Stainless steel frame, acrylic light-transmitting panel, LED lights
VOS-DT10
Mirror stainless steel plated with titanium gold, acrylic light-transmitting plate, hidden light tube
Function name Function Description
Complete selection

Based on the up and down call signals in the building, the elevator will comprehensively analyze and judge the floor selection instructions in the car and other signals, and then automatically select the signal that is consistent with the elevator's running direction to facilitate the elevator's operation.
Automatically return to base station

The single-machine elevator can set the base station operation command register according to the actual needs of the building. If there is no call signal within the specified time, the car will automatically return to the base station, that is, the backup station will be closed. The backup station is usually set up in a hall with a large flow of people or a large number of floors.

light curtain protection The special door curtain protection system enhances the safety of the elevator. The elevator door system can form a dense three-dimensional cross-infrared light curtain. People or objects entering the detection area can be sensed in time, ensuring the safety of passengers to a greater extent.
Car roof inspection

The elevator's car top box is equipped with maintenance and upkeep facilities to improve its efficiency and safety.
Overload protection

When the load of the car exceeds the rated allowable load, the overload buzzer will sound a warning to remind you of the overload situation. If overload is displayed and the car door is not closed, the elevator will not start.

Direct drive with full load When the car load reaches the default value, that is, it directly enters the full load state, the elevator hall call and response will not directly respond to the car, thus reaching the designated floor directly.
Independent service In order to meet the special needs of customers, the independent service state is designed as an independent service. The elevator hall call response signal no longer relies solely on manual control to open and close the door and operate.
Direct control of hall and car door By counting the waiting time for calls from the lobby through the door that cause the car to wait longer than instructions from inside the door, this feature improves overall operational efficiency by independently adjusting the elevator door based on the call hold time and instructions.
Open/close button The elevator car door control panel is equipped with a micro-control switch button, which is flexible in time and convenient for passengers to open and close the door as needed.
Turn button light on/off Press the on or off button, the button light will light up, indicating successful response.
Protection against tampering In order to avoid running on empty stairs, the abnormal number processing instructions are determined through self-weight computer logic to eliminate them. This feature prevents car pranks and wrong instructions
Protection against crime When enabled, the elevator will be pre-positioned in the floor for inspection through the open space.
Restaurant waiting Floors of the building where the restaurant is open longer are allocated to accommodate the additional traffic.
Car emergency lighting Emergency lighting is set up in the car and activated in case of power outage.
Car alarm bell In special circumstances, passengers in the car can press the alarm button to notify the outside world in time.
Fire status reminder display in the car This message appears in the car when a fire is entered.
Car door closing delay protection

When the elevator door opening time exceeds the predetermined time due to the call button being pressed or other factors, the elevator will force the door to close in response to other signals. When the elevator is forced to close the door several times and it still does not close tightly, the elevator will stop running and open the door, and the internal and external call signals will be automatically canceled. When the elevator detects that the door has been closed normally, the elevator resumes normal operation.

Nearest flat floor

When the elevator stops in a non-leveling area due to a fault or maintenance operation, it will level to the nearest floor after the fault is reset or it returns to normal status from maintenance. The door automatically opens and resumes normal operation, while providing voice comfort to passengers. (The voice comfort device is an optional feature)
Terminal floor protection When the elevator reaches the terminal floor and the running speed does not drop to the preset value, the system will forcefully decelerate to protect the safe operation of the elevator.
Car arrival bell

Set on the top of the car, when the elevator reaches the landing floor, a crisp bell will sound to remind passengers that they have arrived.

Reflection instructions are automatically eliminated Run upward or downward, and the direction opposite to the current instruction can be automatically eliminated.
Elevator stop switch

That is, the parking switch. When the stop switch is set to the designated button to switch floors, the elevator will return to the designated position after responding to all instructions. After setting the floor, the energy-saving mode will be activated at the same time, the lighting in the car will be cut off and the elevator parking switch indicator light outside the hall will be lit.
During over-movement torque compensation In order to obtain a better sense of comfort when the elevator starts, the system calculates the load in the car and optimizes it through torque compensation when starting.
The hall on this floor will reopen During the normal closing process, when the call button outside the hall in the same direction as the elevator is pressed, the elevator will reopen the door.
Brake feedback detection function The brake relay signal is monitored throughout the entire process. When the actual status of the brake relay is found to be inconsistent with the initial command, the operation will be stopped.
Shaft position self-learning It has a hoistway position self-learning function and stores the hoistway position signal. The elevator stops directly during normal operation.
Speed ​​feedback detection function Once the system detects that the actual speed does not match the given speed, it will automatically disconnect the safety circuit and alarm.
Contactor feedback detection function Regardless of whether the elevator is in standby or running state, the system will detect the output status of the relay. Once the contactor is found to be in an abnormal state, the system will alarm.
Car fan lighting control Without receiving any operating instructions, the elevator will enter the power-saving mode within a predetermined time after closing the door, turning off the lighting and fans in the car.
Emergency electric operation in the machine room The elevator control room cabinet is equipped with an emergency electric operating device for emergency rescue.
Error command canceled

Regardless of whether the elevator is in standby or running state, if you need to cancel the registered command, you can click the button twice consecutively. Press the corresponding floor button to cancel the registered order.

Closed pending cancellation In the automatic state, when the door remains fully open and in the door opening delay stage, pressing the door closing button can immediately execute early closing.
Re-initialize the run

When the power is restored due to an interruption and the elevator position signal cannot be retained or the car position cannot be determined, the elevator will drive to the end station. re-locate. After positioning, the position display shows the floor location of the elevator and normal operation resumes.

Automatic parking When all elevators in the group control group are idle, they will automatically park on different floors of the building to improve the response speed of the elevators.
Directional instructions outside the hall and inside the car In order to facilitate passengers to understand the running direction of the elevator, there are arrow-shaped indicator lights on the car control panel and the hall call panel to indicate the running direction.
Digital lobby/car display The control panel in the car and the hall call box on each floor use sixteen-segment numbers to display the elevator floor at any time to facilitate passengers to understand the current operating position of the elevator.
Car door opening protection

When the elevator cannot open the door for more than the predetermined time due to mechanical jamming or other reasons, the internal and external call signals will be automatically cancelled. Drive to the adjacent floor to open the door and release the passengers.

Car door door protection

When the elevator cannot be closed within the predetermined time due to mechanical interference or other reasons, it will try three times before closing. If the door closing signal cannot be detected during these three attempts, the elevator will automatically enter the protection state. When the elevator door has been closed normally During monitoring, the elevator will resume normal operation.

Drive unit overheated

When the temperature of the motor exceeds the preset value due to excessive temperature in the machine room or heating during operation, the elevator will automatically enter the protection state. The elevator stops nearby, opens the door to safely evacuate the passengers, and turns off the lights and fans in the car. After the temperature becomes normal, the elevator returns to normal. Run regularly.

Free positioning

When the driver is powered off, parameters are changed, or a fault occurs, the system will automatically capture the fault without human intervention.
Friendly reminder for drivers When the elevator is in the driver's state and there is an external call registration, the buzzer in the control box will sound, and the corresponding button light in the car will flash, a friendly reminder to the driver
Rated load
Number of passengers
Rated speed
Car net size
Clean door size
Hoistway net size
Machine room size
width x depth
width x depth
 width x depth
The pit is deep
high top floor
width x depth x height
630
8
1
1400x1100
800>x2100
2000x1800
1500
4500
1900x1800x2500
1.5-1.75
1700
4800
800
10
1
1400x1350
800x2100
2000x2000
1500
4500
2000x2000x2500
1.5-1.75
2100x2100
1700
4800
2
1800
5000
2.5
2100
5200
2000x2200x2600
1000
13
1
1600x1400
900x2100
2200x2050
1500
4500
2200x2050x2500
1.5-1.75
1700
4800
2
1800
5000
2.5
2300x2200
2100
5200
2300x2200x2600
3
2600
5600
1250
16
1
1800x1500
1000x2100
2500x2200
1500
4500
2500x2200x2500
1.5-1.75
2500x2200
1700
4800
2500x2200x2500
2
1800
5000
2.5
2600x2300
2100
5200
2600x2300x2600
3
2600
5600
1600
21
1
1950x1750
1100x2100
2600x2450
1500
4500
2600x2450x2500
1.5-1.75
2600x2450
1700
4800
2600x2450x2500
2
1800
5000
2.5
2700x2550
2100
5200
2700x2550x2600
3
2600
5600





Rated load Number of passengers Rated speed Car net size Clean door size Hoistway net size
width x depth width x depth width x depth The pit is deep high top floor
630 8 1 1100x1400 800x2100 2100x2000 1600 4500
1.5-1.75 1800 4800
800 10 1 1400x1350 800x2100 2300x2000 1600 4500
1.5-1.75 1800 4800
1000 13 1 1600x1400 900x2100 2500x2000 1600 4500
1.5-1.75 1800 4800
1250 16 1 1800x1500 1000x2100 2850x2100 1500 5300
1.5 1700 5500
1600 21 1 1950x1750 1100x2100 3050x2300 1500 5300
1.5 1700 5500
Passenger elevator

On the basis of inheriting modern mature technology, theVosam small machine room passenger elevator further improves the reliability and flexibility of the elevator system and truly implements the company's environmental protection and energy saving concept.

  • VOS-K02

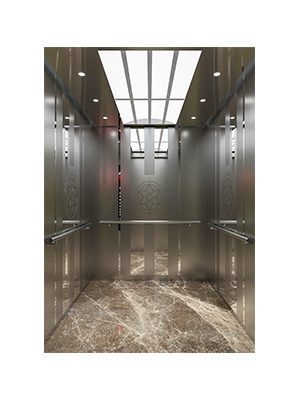

    VOS-K02

    VOS-K02

    C: Mirror S.S, acrylic panel with LED downlight
    W&L&R: Mirror etching S.S, hairline S.S
    F: PVC/ Marble (optional)

  • VOS-K03

    VOS-K03

    VOS-K03

    C: Mirror S.S, acrylic lighting decoration, LED downlight
    W&L&R: Hairline S.S+ mirror etching S.S
    F: PVC/ Marble (optional)
    H: Hairline S.S round handrail (optional)

  • VOS-K05

    VOS-K05

    VOS-K05

    C: Hairline S.S frame, acrylic panel with LED downlight
    W&L&R: Mirror etching S.S+ Hairline S.S
    F: PVC/ Marble (optional)
    H: Hairline S.S round handrail (optional)

  • VOS-K06

    VOS-K06

    VOS-K06

    C: Hairline S.S frame, acrylic panel with LED downlight
    W&L&R: Mirror etching S.S+ Hairline S.S
    F: PVC/ Marble (optional)

  • VOS-K07

    VOS-K07

    VOS-K07

    C: Champagne gold mirror S.S frame, painted acrylic transparent lighting
    W&L&R: Champagne gold hairline S.S, champagne gold mirror S.S
    F: PVC/ Marble (optional)
    H: Champagne gold hairline S.S round handrail (optional)

  • VOS-K08

    VOS-K08

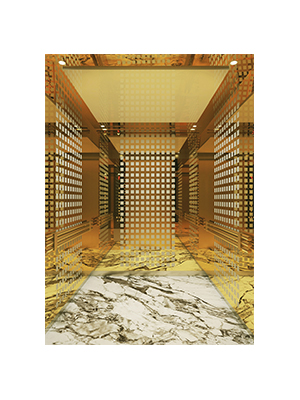

    VOS-K08

    C: Titanium gold mirror S.S+LED lighting
    W&L&R: Titanium gold mirror S.S+ titanium gold mirror etching S.S
    F: PVC/ Marble (optional)
    H: Triple titanium gold S.S round handrail (optional)

  • VOS-K10

    VOS-K10

    VOS-K10

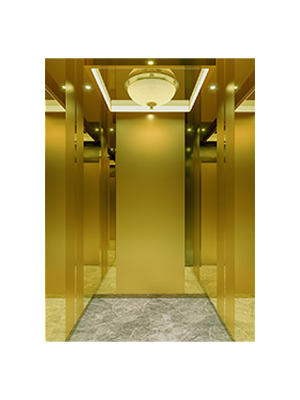

    C: Titanium gold mirror S.S frame, LED with European ceiling lamp
    W&L&R: Titanium gold mirror sandblasted S.S+ titanium gold mirror S.S
    F: PVC/ Marble (optional)

  • VOS-K11

    VOS-K11

    VOS-K11

    C: Champagne gold mirror S.S frame, LED lighting
    W&L&R: Champagne gold mirror S.S, champagne gold sandblasting
    F: PVC/ Marble (optional)
    H: Champagne gold round handrail (optional)

  • VOS-K17

    VOS-K17

    VOS-K17

    C: Black titanium mirror S.S, acrylic + light strip
    W: Marble + light strip, black titanium mirror S.S
    L&R: Wood finish
    F: PVC/ Marble (optional)

  • VOS-K18

    VOS-K18

    VOS-K18

    C: Mirror S.S frame + acrylic soft lighting design
    W: Black titanium S.S + mirror etching S.S
    L&R: Black titanium S.S + mirror S.S
    F: PVC/ Marble (optional)
    H: Hairline S.S round handrail (optional)

  • VOS-K20

    VOS-K20

    VOS-K20

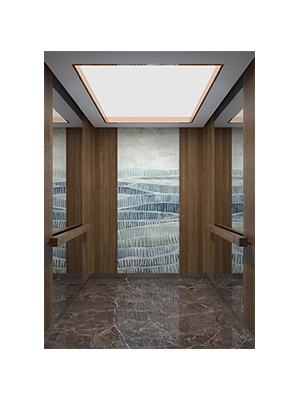

    C: White spray steel frame + rose gold mirror S.S decorative strip, acrylic light
    W: Landscape painting steel plate/ Silk laminated glass+ wood veneer
    L&R: Mirror S.S, with wood veneer
    F: PVC/ Marble (optional)
    H: Wooden flat handrail (optional)

  • VOS-K21

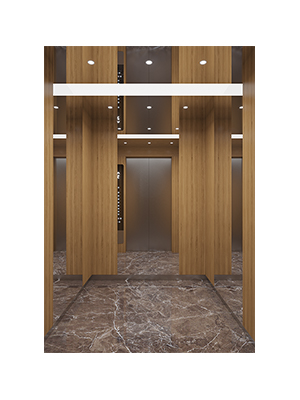

    VOS-K21

    VOS-K21

    C: Mirror S.S, acrylic, LED downlight
    W&L&R: Wood veneer + mirror S.S
    F: PVC/ Marble (optional)
